Premium Navigation App

We are delivering tractor navigation and auto steering software directly to your smartphone or tablet. That allows you to save costs on expensive terminals, get new functionality and stay up to date with new technologies. With the FieldBee tractor navigation application, you can:

• Drive in parallel lines in many patterns
• Keep records of your field operations
• Measure your fields
• Work at night
• Mark obstacles in the field and much more.

You can use your Android smartphone/tablet and all your data will be synchronized with your computer. We are constantly improving our application and adding new functionality with app updates. You can use one account for many devices.

Antenna became steering controller and now has built-in tilt compensation sensor. Easy to install and set up connection to the internet and RTK signal. The autosteer system now has fewer components and is easier to install.

There are 2 ways to assure RTK signal quality. First is connection to the FieldBee Base Station and the second one is NTRIP network option. Radio mode is not supported in current versions due to its low popularity and unstable signal.

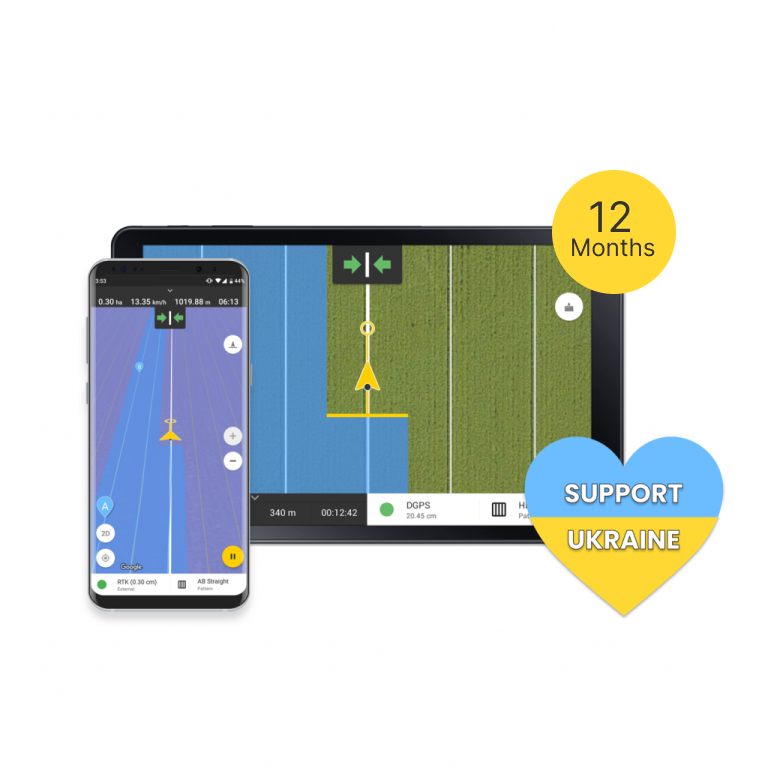

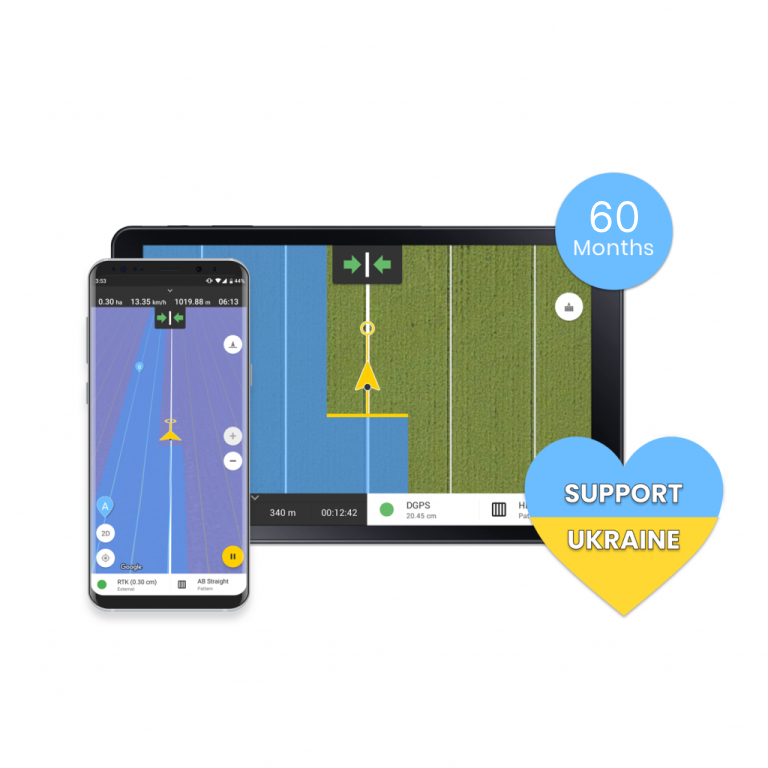

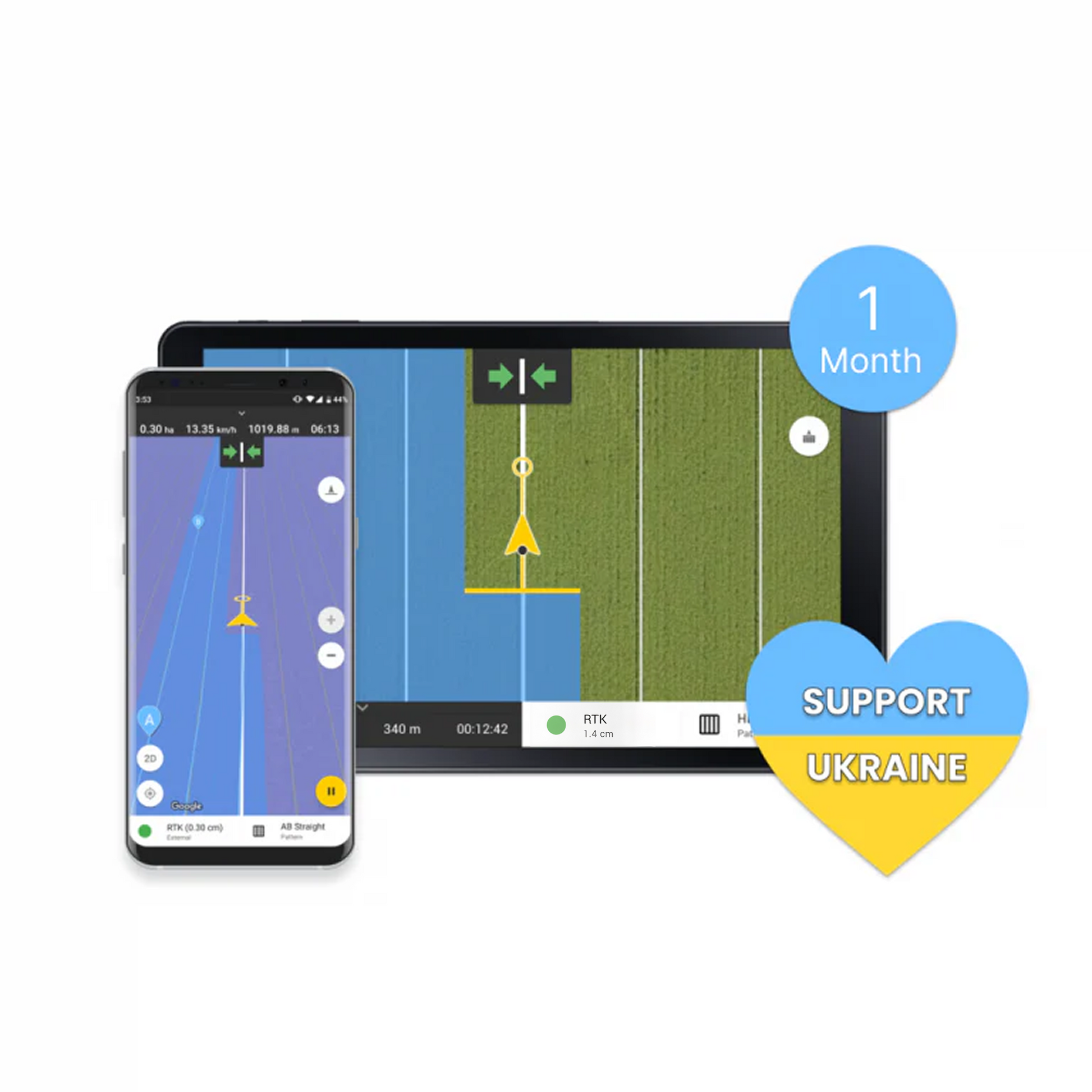

Tablet with FieldBee Navigation App works like a terminal. Main functionality:

• Set up the connection to the WiFi and RTK signal
• Create fields, lines, tasks (operations)
• Work with navigation lines: record, save, move, use the same line for other operations.
• Save information about the field operation: field, machine, crop, amount of material used, covered area etc.

FieldBee navigation software is working only in Android devices. If you are choosing new Android tablet or smartphone here are the requirements that can help to improve your experience with FieldBee system:

Minimum

• Android: 5.1.1: Lollipop;
• Processor: Qualcomm Snapdragon 632 MediaTek Helio P22
• RAM: 4GB
• 3G (WCDMA/UMTS/HSPA); 4G (LTE)
• Connectivity/Radios: WiFi or 3G/LTE, Bluetooth.

Recommended

• Android: 7.1: Nougat;
• Processor: Qualcomm Snapdragon 845 MediaTek Helio X30
• RAM: 8GB
• 3G (WCDMA/UMTS/HSPA); 4G (LTE)
• Connectivity/Radios: WiFi or 3G/LTE, Bluetooth.

Here you can find a list of recommended devices and accessories compatible devices.

Here we have prepared information about FieldBee receiver compatibility with 3rd party terminals.Terminal requirements:

• RS232 DB9 serial port ( 9 pins)
• RTCM 3.0-3.* Format
• baud rate: 115200, 57600 und 38400 bps
• NMEA0183 messages: GGA, GST, RMC, VTG, ZDA. !The GSA message has been planned to be added in Q2 2022!
• FieldBee transfers data with a 10Hz update rate.
